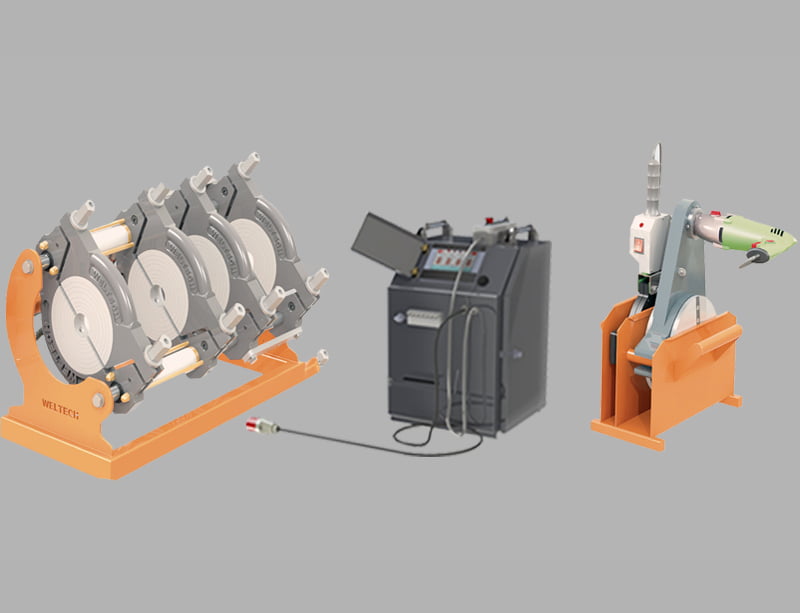

The CNC FW160 is a single-phase, CNC-controlled hydraulic welding machine developed for the butt welding of PE, PP, and PVDF pipes in the Ø40-Ø160 mm range. It is a practical solution for small-diameter pipelines.
The CNC FW160 Plastic Pipe Hydraulic Butt Welding Machine is designed to work with pipe diameters between Ø40 mm and Ø160 mm. It is used for butt welding of pipes made of PE, PP and PVDF materials, up to PN32 pressure class.
Operating on a 220 V single-phase electrical system, the machine has 1.5 kW heater power, 0.37 kW planer power and 0.75 kW hydraulic power. With 150 Bar working pressure and a 4 kVA generator requirement, it operates with low energy consumption on small-diameter lines.
Suitable for operation in ambient temperatures between -10 °C and +40 °C, the machine is commissioned with 4 liters of Hydraulic 46 type hydraulic oil. Thanks to its compact structure, it is easily used in narrow spaces and on construction sites.
| Welding Range | Ø 40 mm - Ø 160 mm |
|---|---|
| Material Type | PE - PP - PVDF |
| Pipe Max Pressure | PN32 |
| Heater Electrical Power | 220 V - 1,5 KW |
| Shaver Electrical Power | 220 V - 0,37 KW |
| Hydraulic Electric Power | 220 V - 0,75 KW |
| Electrical System | Single Phase |
| Total Electricity Consumption | 2,62 KW |
| Operating Pressure | 150 Bar |
| Required Generator Power | 6 KVA |
| Operating Temperature | −10 °C ~ +40 °C |
| Hydraulic Oil | Hydraulic 46 / 4 lt |
| User Manual | 1 pc |
| Main Body | 1 pc |
| Shaver | 1 pc |
| Heater | 1 pc |
| Enclosure and Support Box | 1 pc |
| Sheet | 64 pcs |
| Tool Box | 1 pc |
| Packaging Type | Wooden Crate |
| Number of Containers | 1 Pack |
| Dimensions | 100 x 78 x 80 cm |
| Total Volume | 0.582 m3 |
| Total Net Weight | 103 Kg |
| Total Gross Weight | 140 Kg |
